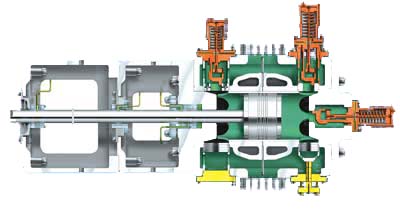

The piston compressor is one of the earliest compressor designs, but it remains the most versatile and is still a very efficient compressor. The piston compressor moves a piston forward in a cylinder via a connecting rod and crankshaft. If only one side of the piston is used for compression, it is described as single acting. If both sides of the piston, top and underside are employed, it is double acting. The versatility of the piston compressors knows virtually no limits. It compresses both air and gases with very little alterations. The piston compressor is the only design capable of compressing air and gas to high pressures, such as breathing air applications. The configuration of a piston compressor can be a single cylinder for low pressure/low volume to a multi-stage configuration capable of compressing to a very high pressure. In these compressors, air is compressed in stages, increasing the pressure before entering into the next stage to compress the air into even higher pressure.

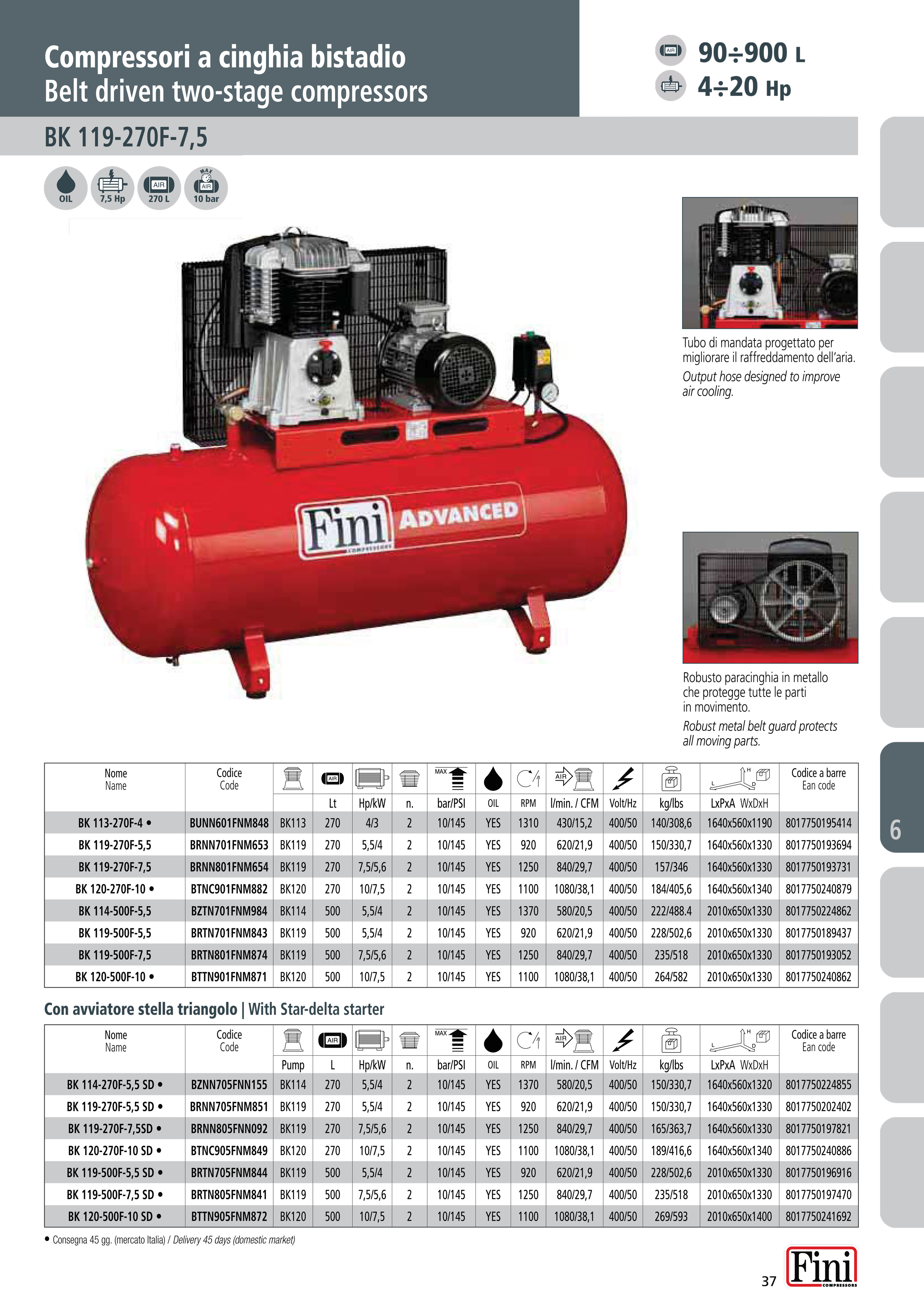

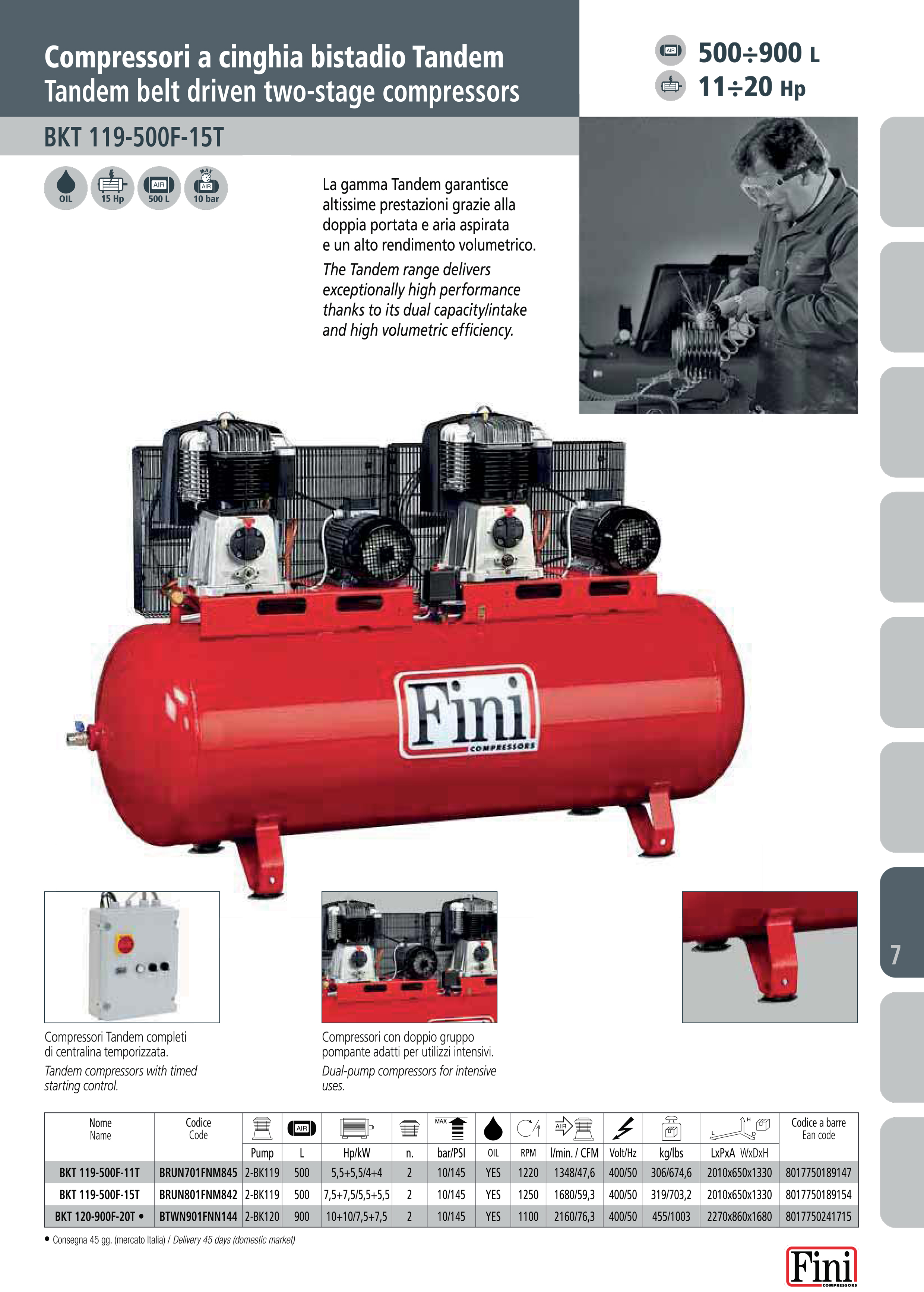

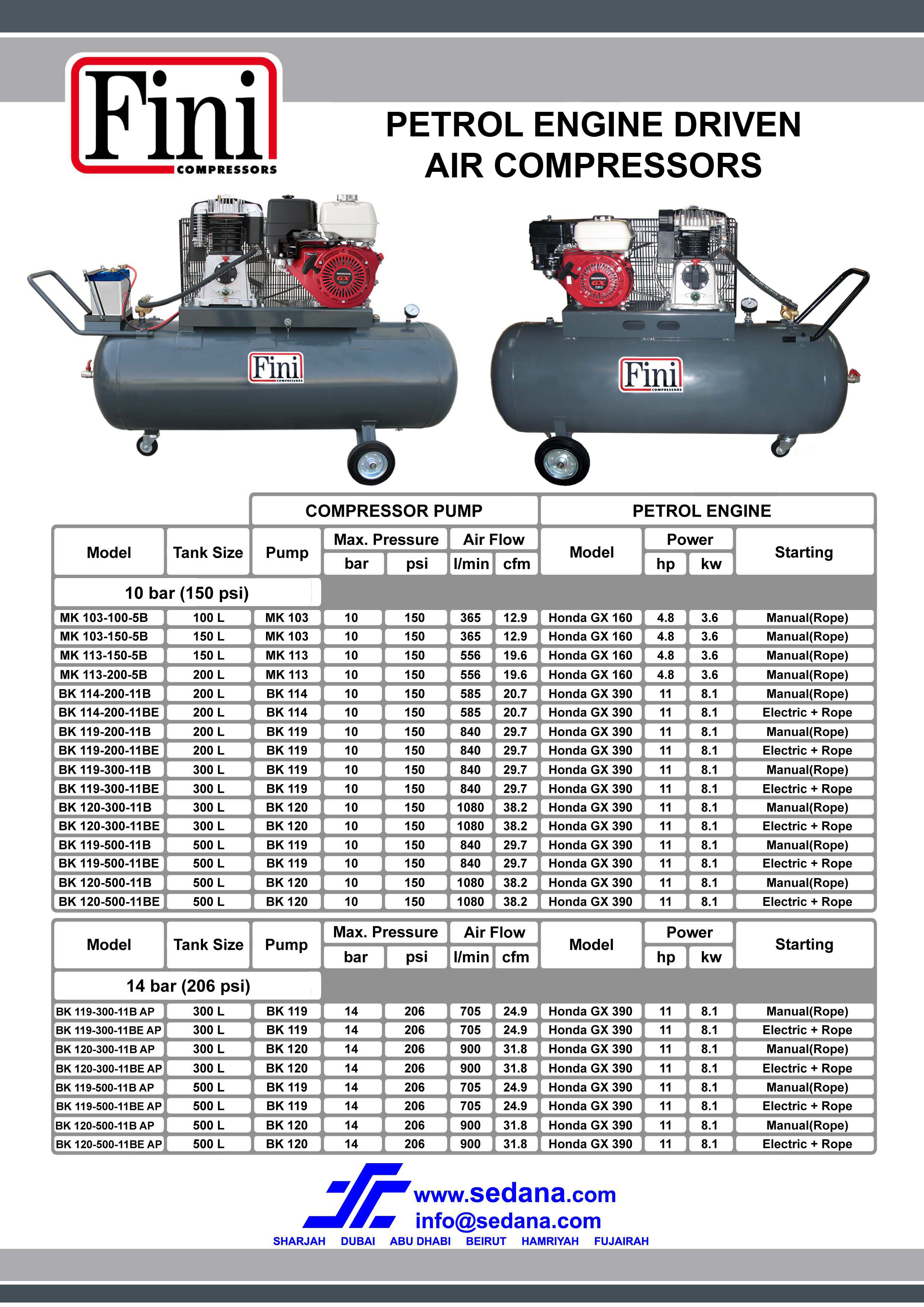

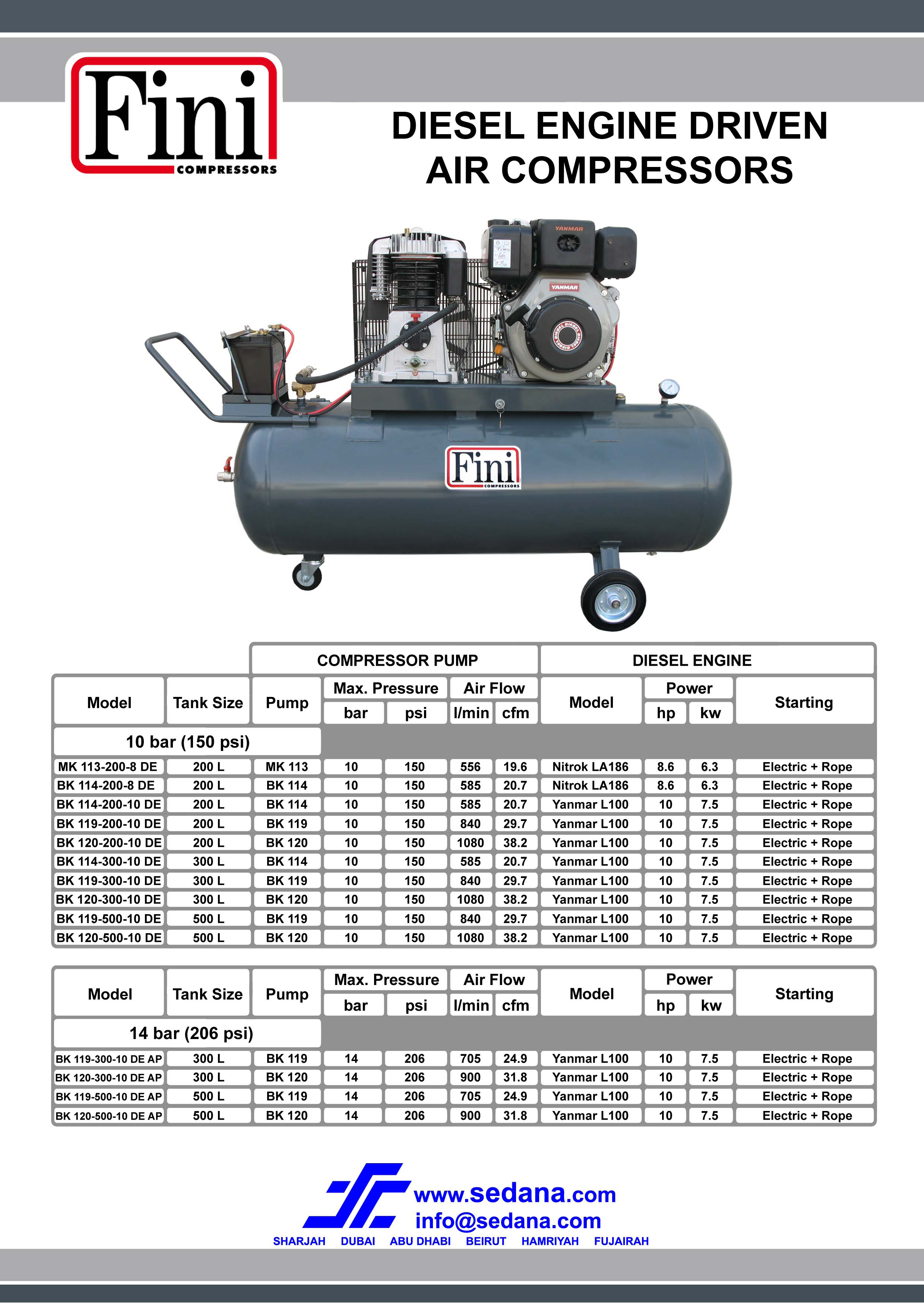

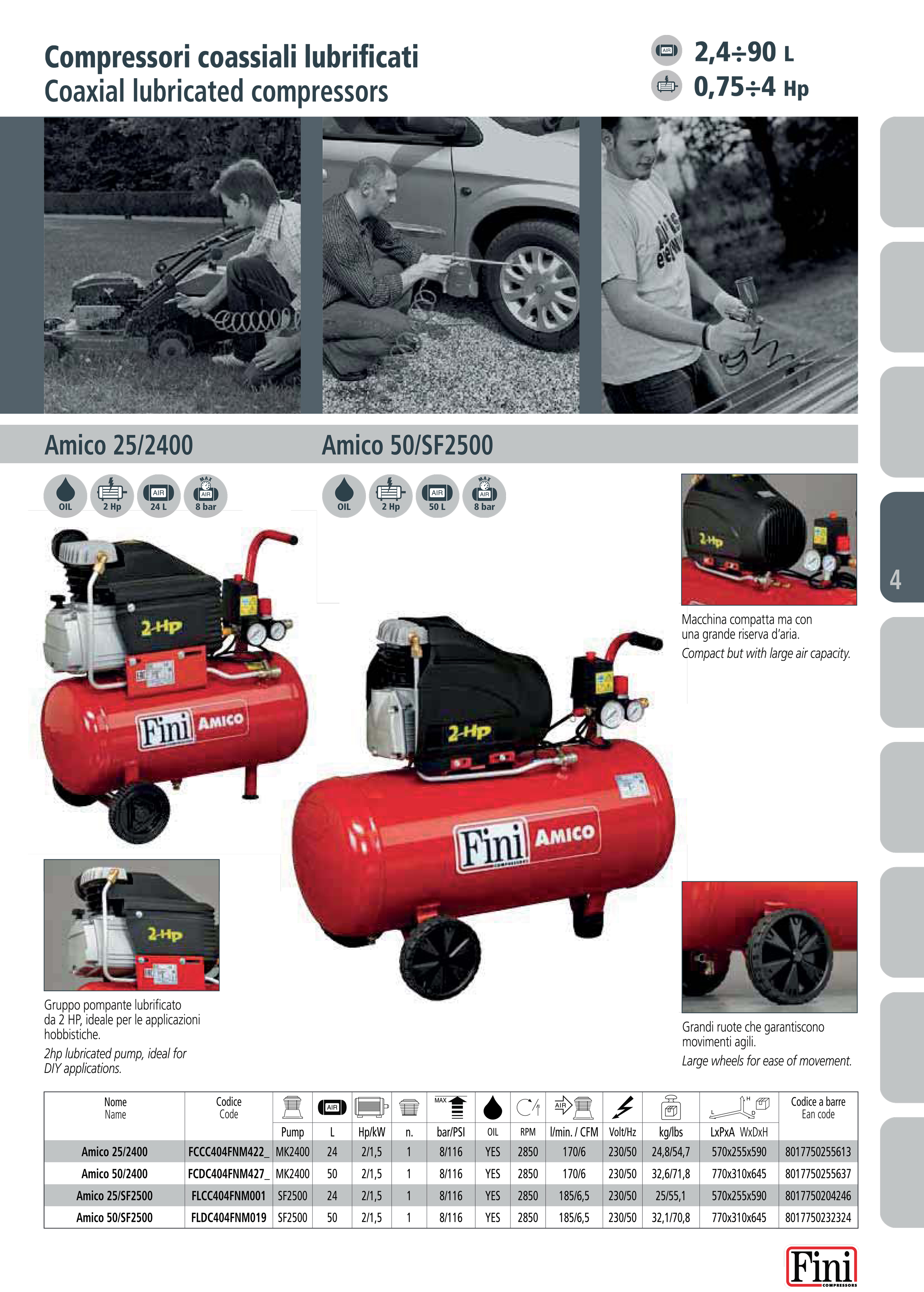

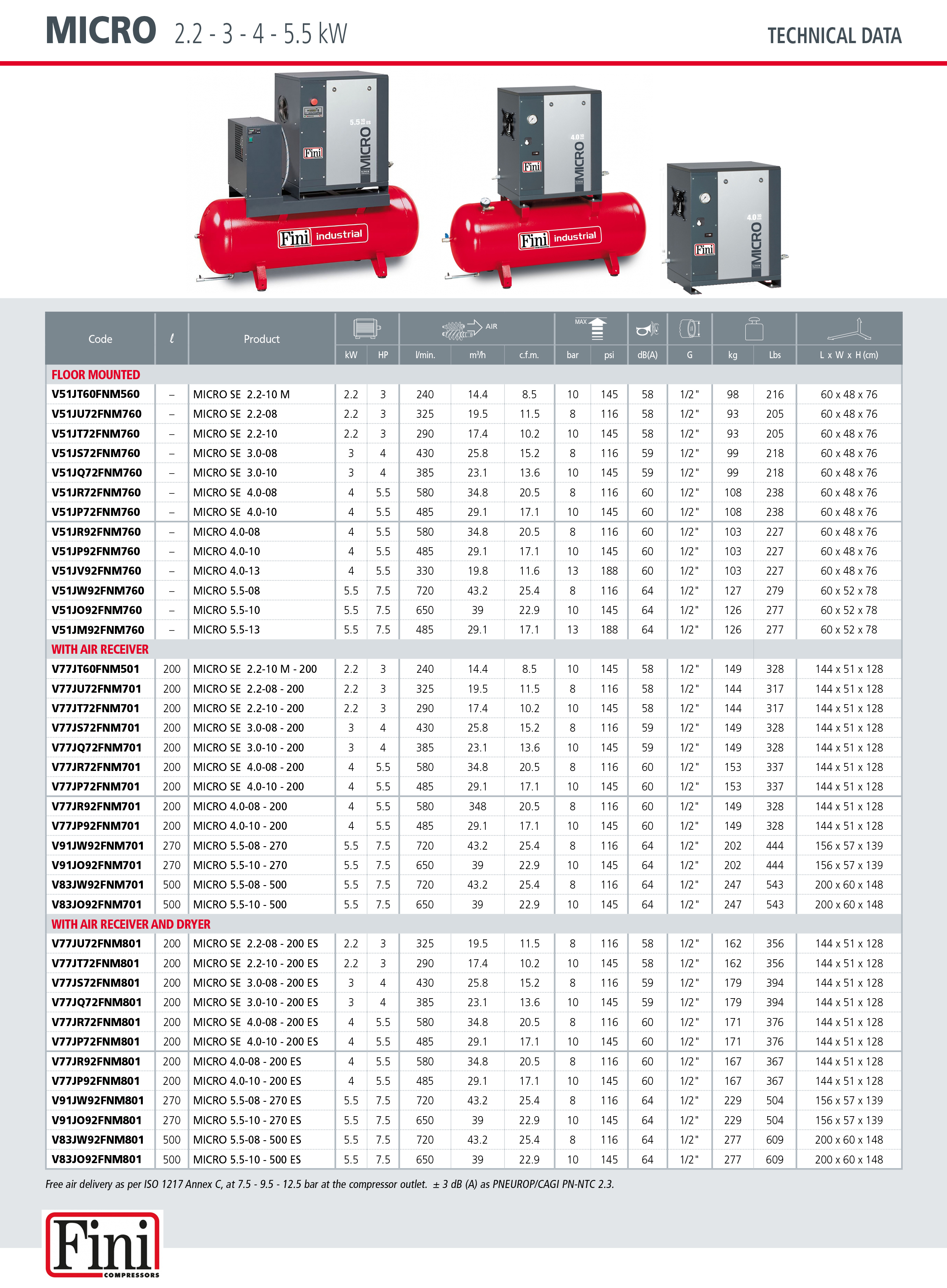

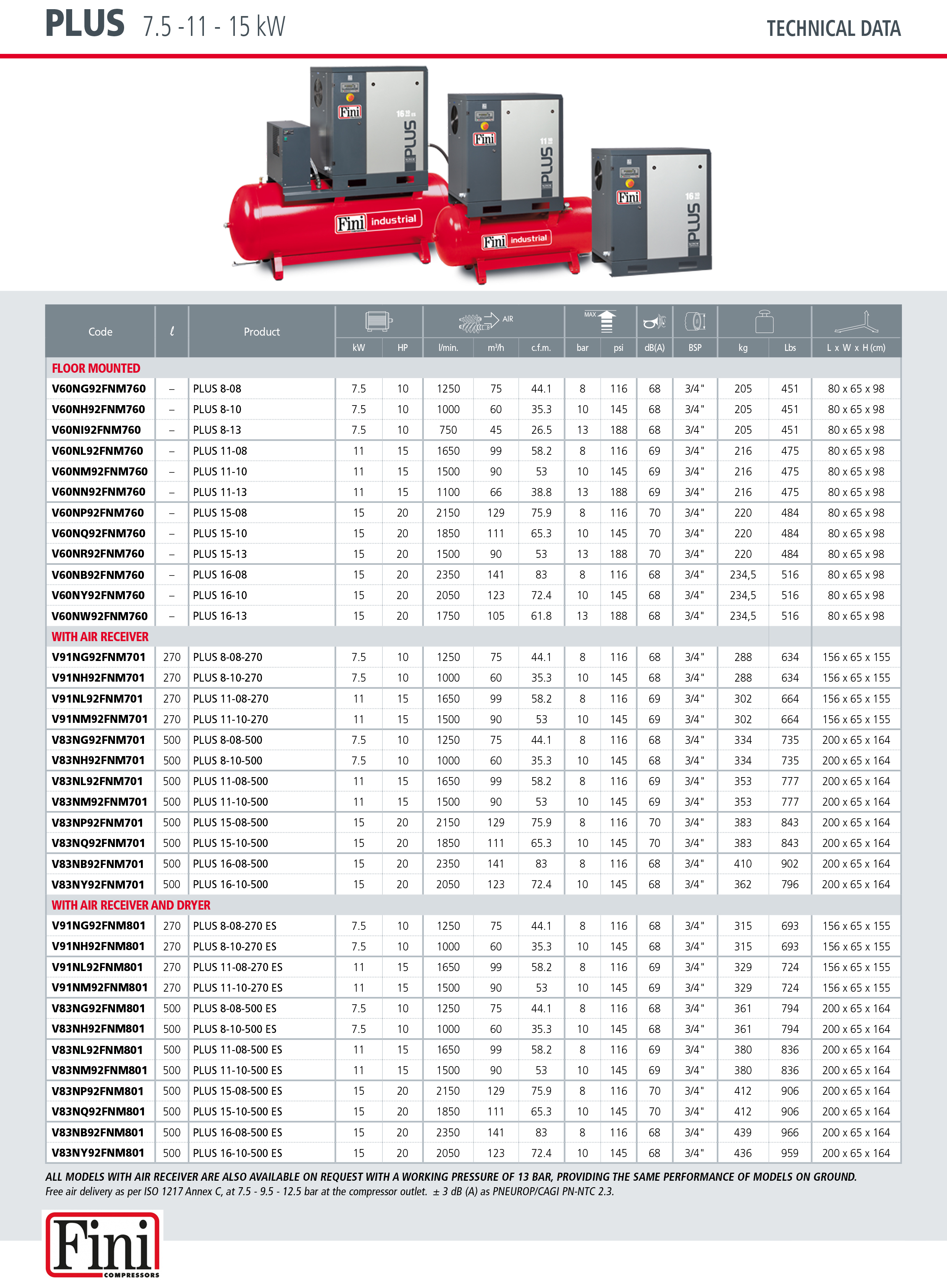

FINI MICRO 2.2-5.5 kW
FINI PLUS 7.5-15 kW

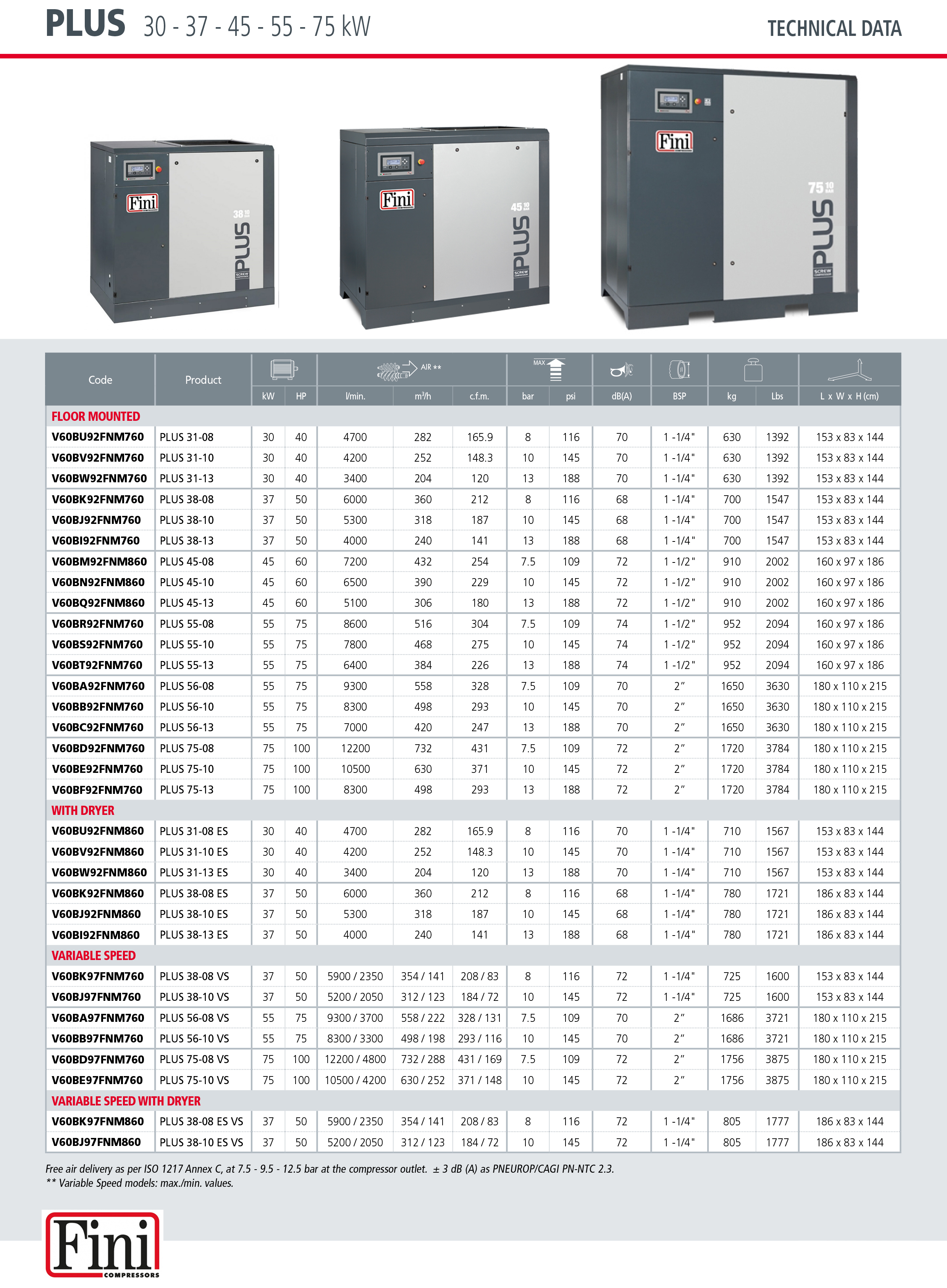

FINI PLUS 30-37-45-55-75 kW

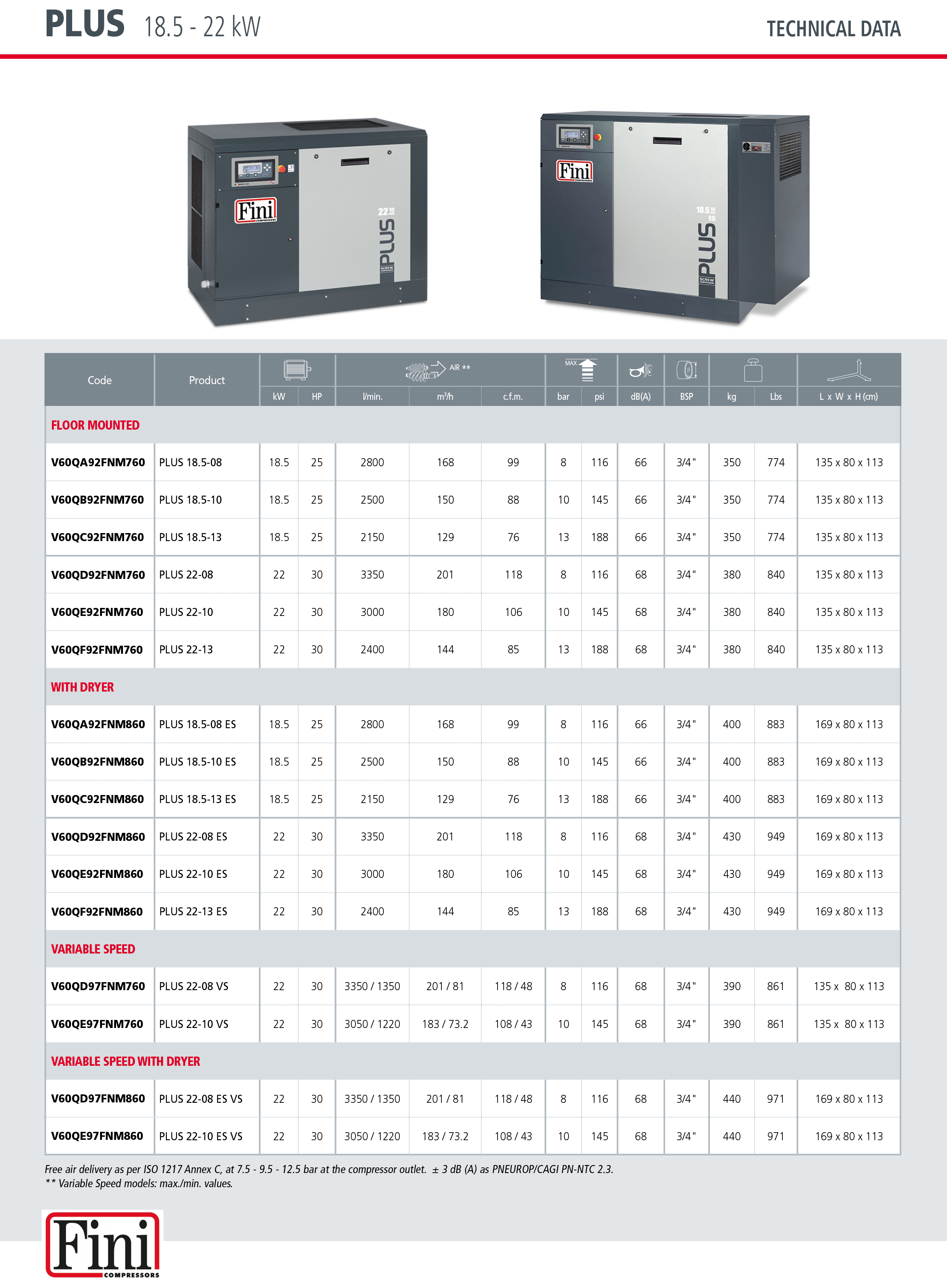

FINI PLUS 18.5-22 kW

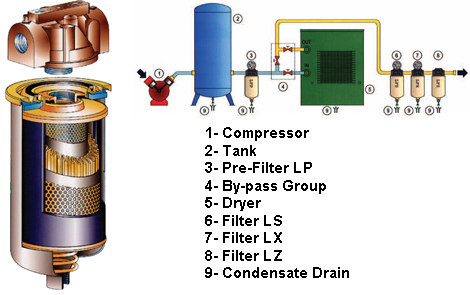

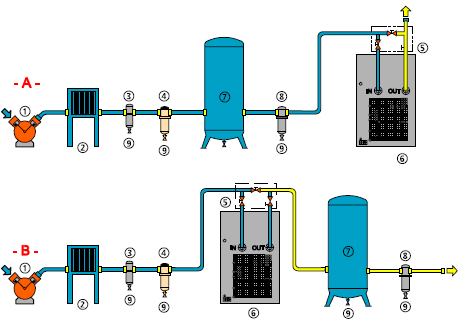

◆ Air Compressor
◆ Aftercoller
◆ Condensate separator
◆ Pre-filter
◆ By-pass group
◆ PLS Dryer
◆ Compressed Air tank
◆ Final filter
◆ Condensate drain

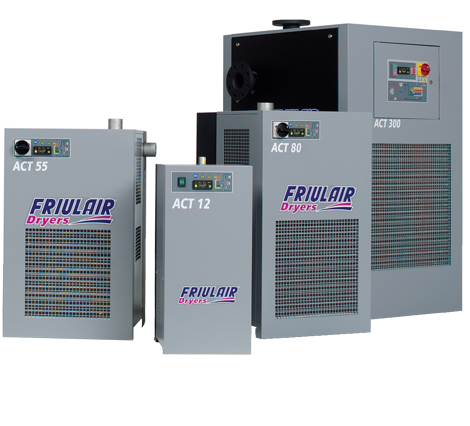

| MODEL | REFRIG. | FLOW RATE Nl/min / Nm³/h / scfm |
PRESSURE DROP bar |
CONNECTIONS Ø IN-OUT |
POWER SUPPLY PH / V / Fr |
WEIGHT Kg |
DIMENSIONS (L x W x H) |
|---|---|---|---|---|---|---|---|
| ACT 3 | R134.a | 350 / 21 / 12 | 0.02 | G 1/2" BSP-F | 1 / 230 / 50-60 | 28 | 345 x 420 x 740 cm |
| ACT 5 | R134.a | 550 / 33 / 19 | 0.03 | G 1/2" BSP-F | 1 / 230 / 50-60 | 29 | 345 x 420 x 740 cm |
| ACT 8 | R134.a | 850 / 51 / 30 | 0.08 | G 1/2" BSP-F | 1 / 230 / 50-60 | 31 | 345 x 420 x 740 cm |
| ACT 12 | R134.a | 1.200 / 72 / 42 | 0.11 | G 1/2" BSP-F | 1 / 230 / 50-60 | 34 | 345 x 420 x 740 cm |
| ACT 18 | R134.a | 1.800 / 108 / 64 | 0.13 | G 1" BSP-F | 1 / 230 / 50-60 | 36 | 345 x 420 x 740 cm |
| ACT 23 | R134.a | 2.300 / 138 / 81 | 0.17 | G 1" BSP-F | 1 / 230 / 50 | 37 | 345 x 420 x 740 cm |
| ACT 30 | R407C | 3.100 / 186 / 109 | 0.15 | G 1.1/4" BSP-F | 1 / 230 / 50 | 46 | 485 x 455 x 825 cm |
| ACT 40 | R407C | 4.000 / 240 / 141 | 0.20 | G 1.1/4" BSP-F | 1 / 230 / 50 | 50 | 485 x 455 x 825 cm |
| ACT 55 | R407C | 5.500 / 330 / 194 | 0.15 | G 1.1/2" BSP-F | 1 / 230 / 50 | 55 | 555 x 580 x 885 cm |
| ACT 60 | R407C | 6.200 / 372 / 219 | 0.18 | G 1.1/2" BSP-F | 1 / 230 / 50 | 63 | 555 x 580 x 885 cm |
| ACT 80 | R407C | 8.100 / 486 / 286 | 0.09 | G 2" BSP-F | 1 / 230 / 50 | 92 | 555 x 625 x 975 cm |
| ACT 100 | R407C | 10.500 / 630 / 371 | 0.13 | G 2" BSP-F | 1 / 230 / 50 | 94 | 555 x 625 x 975 cm |
| ACT 120 | R407C | 12.500 / 750 / 441 | 0.07 | G 2.1/2" BSP-F | 1 / 230 / 50 | 141 | 665 x 725 x 1.105 cm |
| ACT 140 | R407C | 14.500 / 870 / 512 | 0.13 | G 2.1/2" BSP-F | 1 / 230 / 50 | 150 | 665 x 725 x 1.105 cm |
| ACT 160 | R407C | 16.000 / 960 / 565 | 0.15 | G 2.1/2" BSP-F | 1 / 230 / 50 | 161 | 665 x 725 x 1.105 cm |
| ACT 55 3~ | R134.a | 5.500 / 330 / 194 | 0.15 | G 1.1/2" BSP-F | 3 / 400 / 50 | 72 | 555 x 580 x 885 cm |
| ACT 60 3~ | R134.a | 6.200 / 372 / 219 | 0.18 | G 1.1/2" BSP-F | 3 / 400 / 50 | 80 | 555 x 580 x 885 cm |
| ACT 80 3~ | R134.a | 8.100 / 486 / 286 | 0.09 | G 2" BSP-F | 3 / 400 / 50 | 108 | 555 x 625 x 975 cm |
| ACT 100 3~ | R134.a | 10.500 / 630 / 371 | 0.13 | G 2" BSP-F | 3 / 400 / 50 | 110 | 555 x 625 x 975 cm |
| ACT 120 3~ | R407C | 12.500 / 750 / 441 | 0.07 | G 2.1/2" BSP-F | 3 / 400 / 50 | 158 | 665 x 725 x 1.105 cm |
| ACT 140 3~ | R407C | 14.500 / 870 / 512 | 0.13 | G 2.1/2" BSP-F | 3 / 400 / 50 | 160 | 665 x 725 x 1.105 cm |
| ACT 160 3~ | R407C | 16.000 / 960 / 565 | 0.15 | G 2.1/2" BSP-F | 3 / 400 / 50 | 170 | 665 x 725 x 1.105 cm |
| ACT 180 | R407C | 18.000 / 1.080 / 636 | 0.17 | DN 80-PN 16 | 3 / 400 / 50 | 240 | 790 x 1.000 x 1.465 cm |
| ACT 210 | R407C | 21.000 / 1.260 / 742 | 0.21 | DN 80-PN 16 | 3 / 400 / 50 | 242 | 790 x 1.000 x 1.465 cm |
| ACT 250 | R407C | 25.000 / 1.500 / 883 | 0.013 | DN 80-PN 16 | 3 / 400 / 50 | 275 | 790 x 1.000 x 1.465 cm |
| ACT 300 | R407C | 30.000 / 1.800 / 1.060 | 0.19 | DN 80-PN 16 | 3 / 400 / 50 | 276 | 790 x 1.000 x 1.465 cm |
| ACT 360 | R407C | 36.800 / 2.208 / 1.300 | 0.26 | DN 80-PN 16 | 3 / 400 / 50 | 311 | 790 x 1.000 x 1.465 cm |
| ACT 400 | R407C | 40.000 / 2.400 / 1.413 | 0.21 | DN 100-PN 16 | 3 / 400 / 50 | 463 | 1.135 x 1.205 x 1.750 cm |
| ACT 500 | R407C | 50.000 / 3.000 / 1.766 | 0.14 | DN 100-PN 16 | 3 / 400 / 50 | 538 | 1.135 x 1.205 x 1.750 cm |
| ACT 600 | R407C | 60.000 / 3.600 / 2.119 | 0.20 | DN 100-PN 16 | 3 / 400 / 50 | 540 | 1.135 x 1.205 x 1.750 cm |
| ACT 720 | R407C | 73.600 / 4.416 / 2.600 | 0.26 | DN 100-PN 16 | 3 / 400 / 50 | 612 | 1.135 x 1.205 x 1.750 cm |
| ACT 900 | R407C | 90.000 / 5.400 / 3.178 | 0.20 | DN 150-PN 16 | 3 / 400 / 50 | 830 | 1.300 x 1.750 x 1.810 cm |
| ACT 1100 | R407C | 110.400 / 6.624 / 3.900 | 0.26 | DN 150-PN 16 | 3 / 400 / 50 | 940 | 1.300 x 1.750 x 1.810 cm |
| ACT 1200 | R407C | 120.000 / 7.200 / 4.238 | 0.20 | DN 200-PN 16 | 3 / 400 / 50 | 1.055 | 1.400 x 2.200 x 1.870 cm |
| ACT 1500 | R407C | 147.200 / 8.832 / 5.200 | 0.26 | DN 200-PN 16 | 3 / 400 / 50 | 1.200 | 1.400 x 2.200 x 1.870 cm |
| ACT 1800 | R407C | 180.000 / 10.800 / 6.537 | 0.20 | DN 200-PN 16 | 3 / 400 / 50 | 1.650 | 1.450 x 2.165 x 2.430 cm |
| ACT 2200 | R407C | 220.000 / 13.200 / 7.769 | 0.26 | DN 200-PN 16 | 3 / 400 / 50 | 1.750 | 1.450 x 2.165 x 2.430 cm |
| ACT 2400 | R407C | 240.000 / 14.400 / 8.476 | 0.20 | DN 250-PN 16 | 3 / 400 / 50 | 1.950 | 1.450 x 2.455 x 2.455 cm |
| ACT 3000 | R407C | 300.000 / 18.000 / 10.594 | 0.26 | DN 250-PN 16 | 3 / 400 / 50 | 2.100 | 1.450 x 2.455 x 2.455 cm |

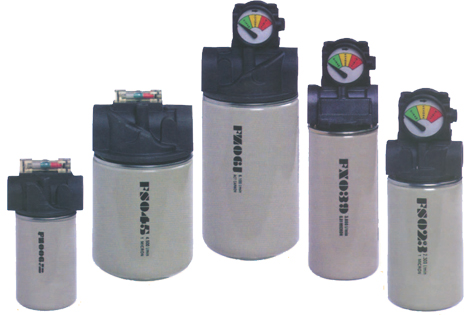

P GRADE FILTER (5 MICRON)
Filter capable to separate emulsion and particles down to 5 micron
S GRADE FILTER (1 MICRON)
Filter capable to separate particles down to 1 micron, liquid an oil included. Maximum contents of residual oil 0,1 mg/m³
X GRADE FILTER (0.01 MICRON)
Oil removing filter capable to separate residual oil and extremely small particles down to 0,01 micron. Maximum contents of residual oil 0,01 mg/m³. It produces air technically free from oil.
Z GRADE FILTER (ACTIVATED CARBON)
Activated carbon filter for the elimination of oil vapours and odour. When installed, after an (X) grade filter, it lowers the maximum contents of residual oil to 0,003 mg/m³.
